VHMED provides a wide range of instrumentations for endoscopic tissue manipulations, including electrosurgical instrumentations in the diameters of 5mm and 3mm, as well as articulating instruments to enable the reach to target tissues which are difficult to operate by standard straight instruments, both monopolar laparoscopic instruments and bipolar laparoscopic instruments. Our proprietary Surecut technology allows our VShear curved Metzenbaum scissors with best-in-class smoothness and sharpness in every endoscopic transection. Laparoscopic Mini Metzenbaum scissors are designed for the transection of delicate tissues. Our VDissect dissecting forceps are designed for efficient tissue dissection with electrocautery energy. A wide choice of VGrasp series grasping forceps are designed for the grasping applications of different clinical structures. With the broadest range of laparoscopic instrumentations, VHMED offers a comprehension solutions for endoscopic tissue manipulations.
3mm Laparoscopic Instruments
3mm Laparoscopic Instruments
Product Descriptions
VHMED 3mm laparoscopic products enable surgeons to perform micro-laparoscopic surgeries with standard laparoscopic techniques. The reduced port size provides both clinical and cosmetic benefits for the necessary laparoscopic procedures.
VHMED‘s 3 millimeters laparoscopic hand instruments are available with 3mm Metzenbaum curved scissors, 3mm Maryland dissector, 3mm Johann grasper and 3mm Clinch grasper on our ergonomically designed Prezena
handle. We offer the standard length of 280mm, shorter length of 200mm, and 400 mm for longer length. 3 millimeters suction irrigation tube set is also available with a standard 280 millimeters length, rounded tip probe for atraumatic dissection. VHMED also offers Damocles series of trocars for the use along with 3mm instrumentations. VHMED 3 millimeters laparoscopic solutions offer an outstanding clinical and cosmetic advantage as compared to the standard 5mm laparoscopic instruments.
VHMED 3mm trocars and instruments are single use products to avoid the needs of re-sterilization, and the possible bio-contamination.

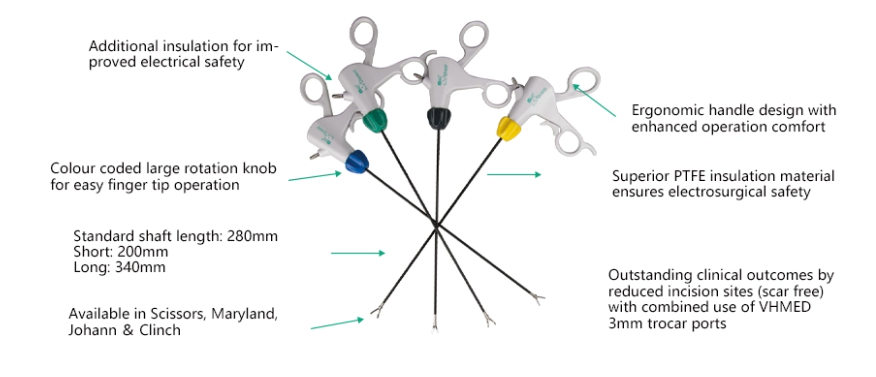

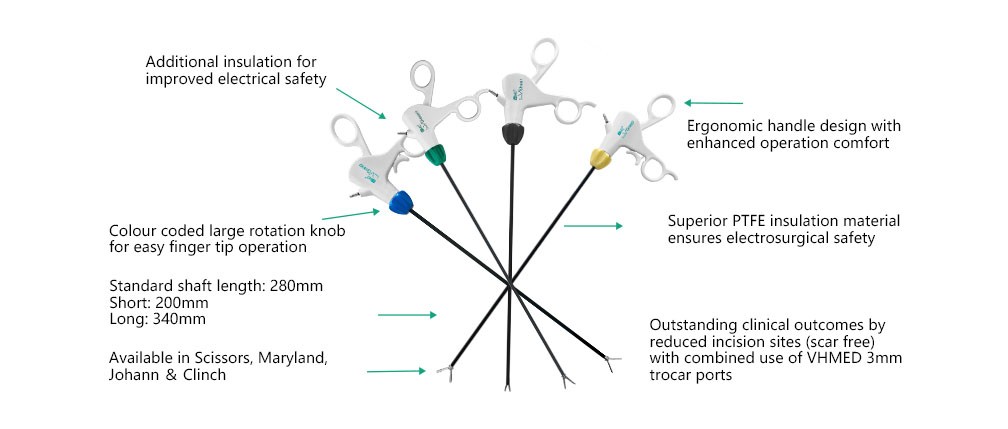

Features & Benefits
Standard electrosurgery connections, great instrument compatibility
Ergonomically designed Prezena instrument handle, outstanding user comfort
Additional insulation layer with advanced material, improved electrosurgical safety
Colour coded design, with enhanced instrument identification in the operating theatre
Intuitive ratchet on/off mechanism on all graspers, offers greater flexibility in tissue manipulations

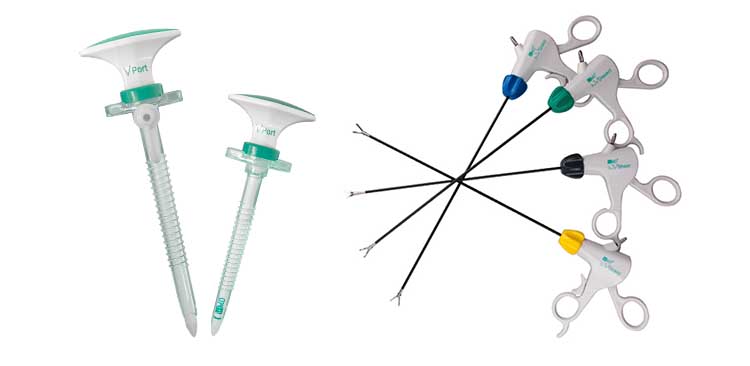

Ideal use with the companion of Damocles Trocars

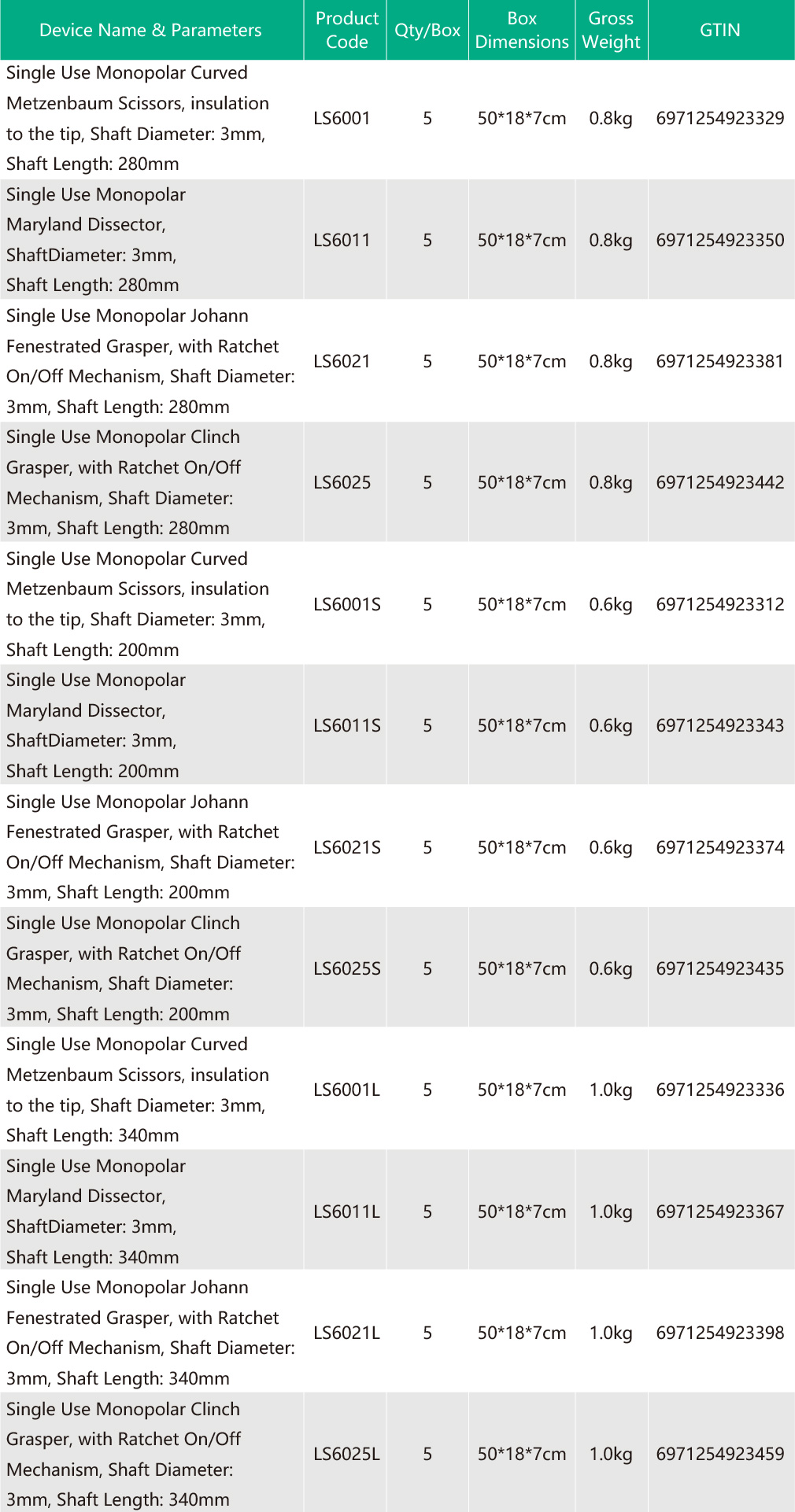

Order Information
Device Name & Parameters | Product Code | Qty/Box | Box Dimensions | Gross Weigh | GTIN |
| Single Use Monopolar Curved Metzenbaum Scissors, insulation to the tip, Shaft Diameter: 3mm, Shaft Length: 280mm | LS6001 | 5 | 50*18*7cm | 0.8kg | 6971254923329 |
Single Use Monopolar Maryland Dissector, Shaft Diameter: 3mm, Shaft Length: 280mm | LS6011 | 5 | 50*18*7cm | 0.8kg | 6971254923350 |
| Single Use Monopolar Johann Fenestrated Grasper, with Ratchet On/Off Mechanism, Shaft Diameter: 3mm, Shaft Length: 280mm | LS6021 | 5 | 50*18*7cm | 0.8kg | 6971254923381 |
Single Use Monopolar Clinch Grasper, with Ratchet On/Off Mechanism, Shaft Diameter: 3mm, Shaft Length: 280mm | LS6025 | 5 | 50*18*7cm | 0.8kg | 6971254923442 |
| Single Use Monopolar Curved Metzenbaum Scissors, insulation to the tip, Shaft Diameter: 3mm, Shaft Length: 200mm | LS6001S | 5 | 50*18*7cm | 0.6kg | 6971254923312 |
| Single Use Monopolar Maryland Dissector, Shaft Diameter: 3mm, Shaft Length: 200mm | LS6011S | 5 | 50*18*7cm | 0.6kg | 6971254923343 |
| Single Use Monopolar Johann Fenestrated Grasper, with Ratchet On/Off Mechanism, Shaft Diameter: 3mm, Shaft Length: 200mm | LS6021S | 5 | 50*18*7cm | 0.6kg | 6971254923374 |
| Single Use Monopolar Clinch Grasper, with Ratchet On/Off Mechanism, Shaft Diameter: 3mm, Shaft Length: 200mm | LS6025S | 5 | 50*18*7cm | 0.6kg | 6971254923435 |
| Single Use Monopolar Curved Metzenbaum Scissors, insulation to the tip, Shaft Diameter: 3mm, Shaft Length: 340mm | LS6001L | 5 | 50*18*7cm | 1.0kg | 6971254923336 |
Single Use Monopolar Maryland Dissector, Shaft Diameter: 3mm, Shaft Length: 340mm | LS6011L | 5 | 50*18*7cm | 1.0kg | 6971254923367 |
| Single Use Monopolar Johann Fenestrated Grasper, with Ratchet On/Off Mechanism, Shaft Diameter: 3mm, Shaft Length: 340mm | LS6021L | 5 | 50*18*7cm | 1.0kg | 6971254923398 |
Single Use Monopolar Clinch Grasper, with Ratchet On/Off Mechanism, Shaft Diameter: 3mm, Shaft Length: 340mm | LS6025L | 5 | 50*18*7cm | 1.0kg | 6971254923459 |
