VHMED provides a wide range of instrumentations for endoscopic tissue manipulations, including electrosurgical instrumentations in the diameters of 5mm and 3mm, as well as articulating instruments to enable the reach to target tissues which are difficult to operate by standard straight instruments, both monopolar laparoscopic instruments and bipolar laparoscopic instruments. Our proprietary Surecut technology allows our VShear curved Metzenbaum scissors with best-in-class smoothness and sharpness in every endoscopic transection. Laparoscopic Mini Metzenbaum scissors are designed for the transection of delicate tissues. Our VDissect dissecting forceps are designed for efficient tissue dissection with electrocautery energy. A wide choice of VGrasp series grasping forceps are designed for the grasping applications of different clinical structures. With the broadest range of laparoscopic instrumentations, VHMED offers a comprehension solutions for endoscopic tissue manipulations.
Articulating Instruments
Laparoscopic Articulating Instruments
Product Descriptions

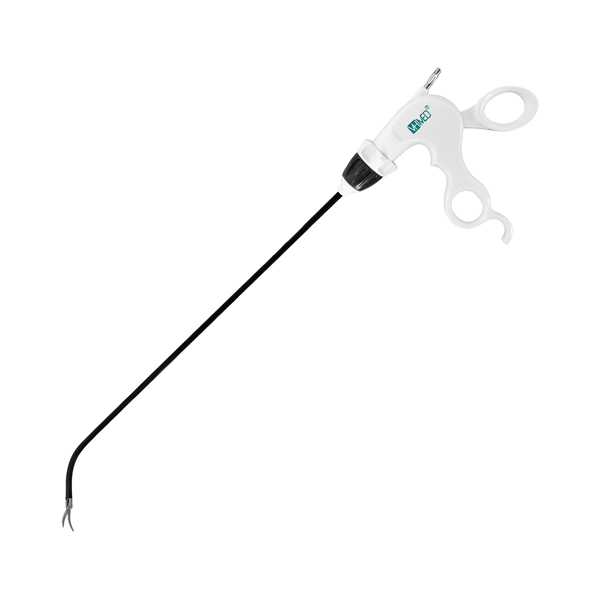

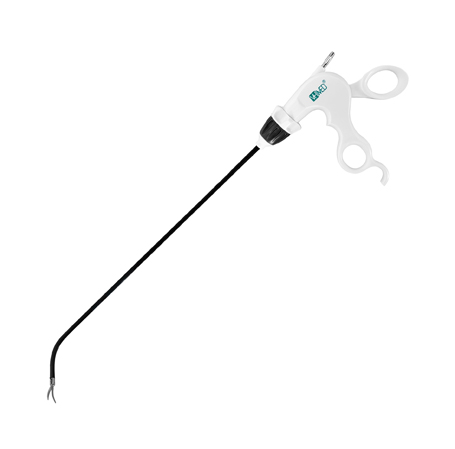

VHMED laparoscopic articulating instruments are specifically designed for the electrocautery or non-electrocautery use on the target tissues which are difficult to reach by standard straight tissues in laparoscopic procedures. They are the ideal instrumentations for single incision laparoscopic surgery or where the angulation of the instrument is required. The standard 5mm diameter instruments are fit well with the sizes of regular trocar ports. VHMED articulating instruments has an ergonomic Ergora
handle design, intuitive lipstick shell angulation adjustment wheel for the convenience in use. The complete scissors, dissectors, Clinch and Johann graspers suit for different use in tissue handling. The additional layer of insulation on the electrosurgery connection offers enhanced electrosurgical safety for the operator. VHMED articulating laparoscopic instruments are your ideal tool for laparoscopic tissue handling where instrument angulation is in need.

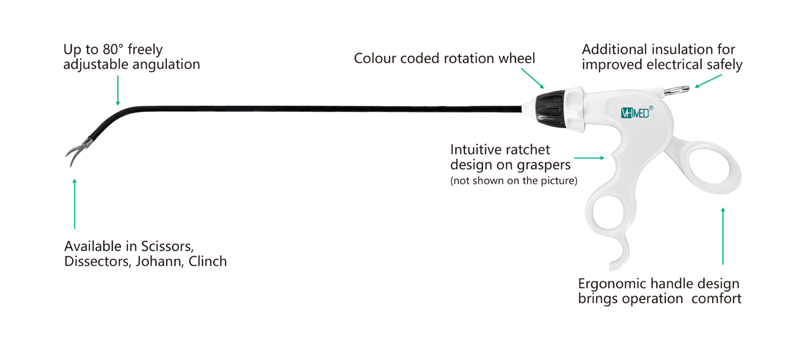

Features & Benefits
Up to 80o freely adjustable angulation, greater flexibility in tissue manipulation
Lip stick shell style angulation adjustment wheel, easy to use
Ergonomically designed Ergora instrument handle, outstanding user comfort
Additional insulation layer with advanced material, improved electrosurgical safety
Colour coded design, with enhanced instrument identification in the operating theatre
Intuitive ratchet on/off mechanism, offers greater flexibility in tissue manipulations

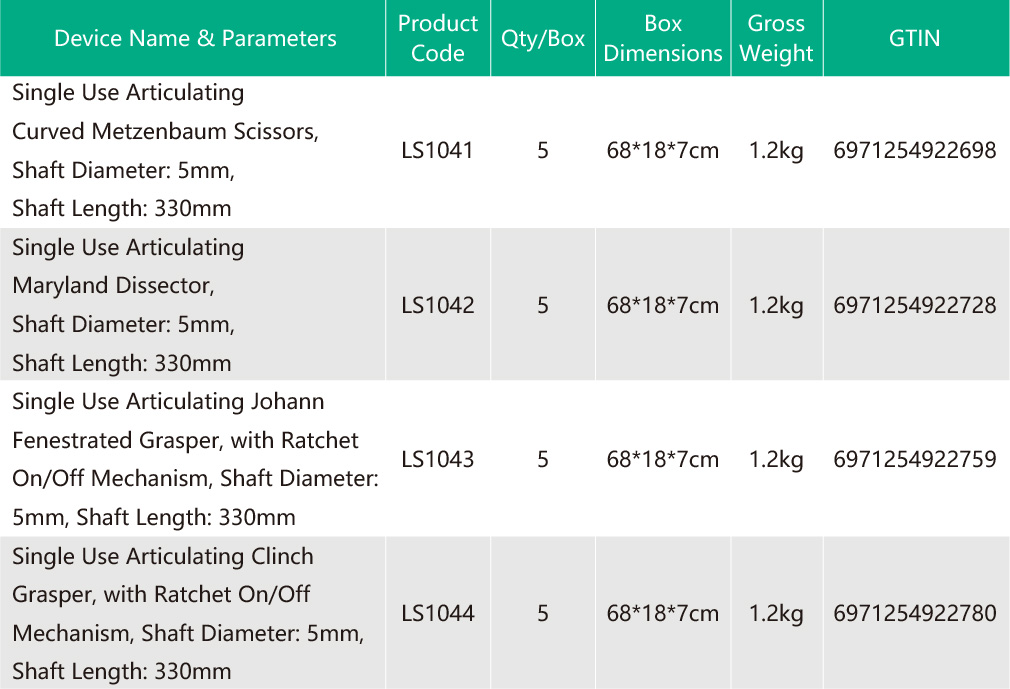

Order Information
Device Name & Parameters | Product Code | Qty/Box | Box Dimensions | Gross Weight | GTIN |
Single Use Articulating Curved Metzenbaum Scissors, Shaft Diameter: 5mm, Shaft Length: 330mm | LS1041 | 5 | 68*18*7cm | 1.2kg | 6971254922698 |
Single Use Articulating Maryland Dissector, Shaft Diameter: 5mm, Shaft Length: 330mm | LS1042 | 5 | 68*18*7cm | 1.2kg | 6971254922728 |
Single Use Articulating Johann Fenestrated Grasper, with Ratchet On/Off Mechanism, Shaft Diameter: 5mm, Shaft Length: 330mm | LS1043 | 5 | 68*18*7cm | 1.2kg | 6971254922759 |
Single Use Articulating Clinch Grasper, with Ratchet On/Off Mechanism, Shaft Diameter: 5mm, Shaft Length: 330mm | LS1044 | 5 | 68*18*7cm | 1.2kg | 6971254922780 |
