3mm Laparoscopic Instruments
Product Descriptions
VHMED 3mm laparoscopic products enable surgeons to perform micro-laparoscopic surgeries with standard laparoscopic techniques. The reduced port size provides both clinical and cosmetic benefits for the necessary laparoscopic procedures.

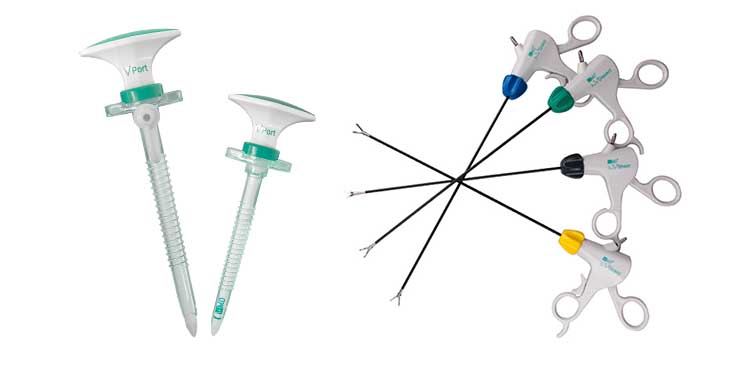

VHMED‘s 3 millimeters laparoscopic hand instruments are available with 3mm Metzenbaum curved scissors, 3mm Maryland dissector, 3mm Johann grasper and 3mm Clinch grasper on our ergonomically designed PrezenaÒ handle. We offer the standard length of 280mm, shorter length of 200mm, and 400 mm for longer length. 3 millimeters suction irrigation tube set is also available with a standard 280 millimeters length, rounded tip probe for atraumatic dissection. VHMED also offers DamoclesÒ series of trocars for the use along with 3mm instrumentations. VHMED 3 millimeters laparoscopic solutions offer an outstanding clinical and cosmetic advantage as compared to the standard 5mm laparoscopic instruments.
VHMED 3mm trocars and instruments are single use products to avoid the needs of re-sterilization, and the possible bio-contamination.
Features & Benefits
Standard electrosurgery connections, great instrument compatibility
Ergonomically designed PrezenaÒ instrument handle, outstanding user comfort
Additional insulation layer with advanced material, improved electrosurgical safety
Colour coded design, with enhanced instrument identification in the operating theatre
Intuitive ratchet on/off mechanism on all graspers, offers greater flexibility in tissue manipulations
Ideal use with the companion of DamoclesÒ Trocars

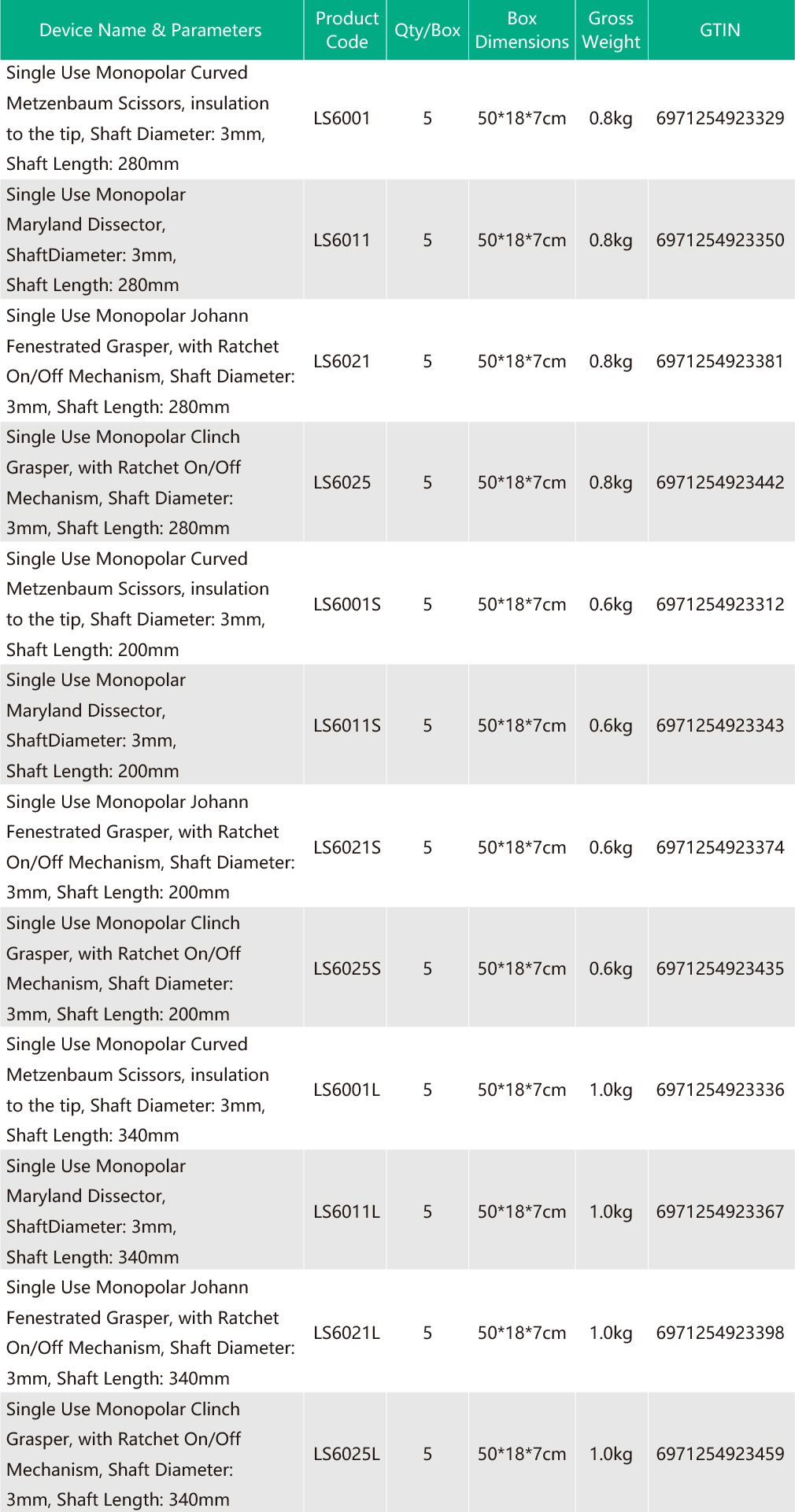

Order Information
Device Name & Parameters | Product Code | Qty/Box | Box Dimensions | Gross Weight | GTIN |
Single Use Monopolar Curved Metzenbaum Scissors, insulation to the tip, Shaft Diameter: 3mm, Shaft Length: 280mm | LS6001 | 5 | 50*18*7cm | 0.8kg | 6971254923329 |
Single Use Monopolar Maryland Dissector, Shaft Diameter: 3mm, Shaft Length: 280mm | LS6011 | 5 | 50*18*7cm | 0.8kg | 6971254923350 |
Single Use Monopolar Johann Fenestrated Grasper, with Ratchet On/Off Mechanism, Shaft Diameter: 3mm, Shaft Length: 280mm | LS6021 | 5 | 50*18*7cm | 0.8kg | 6971254923381 |
Single Use Monopolar Clinch Grasper, with Ratchet On/Off Mechanism, Shaft Diameter: 3mm, Shaft Length: 280mm | LS6025 | 5 | 50*18*7cm | 0.8kg | 6971254923442 |
Single Use Monopolar Curved Metzenbaum Scissors, insulation to the tip, Shaft Diameter: 3mm, Shaft Length: 200mm | LS6001S | 5 | 50*18*7cm | 0.6kg | 6971254923312 |
Single Use Monopolar Maryland Dissector, Shaft Diameter: 3mm, Shaft Length: 200mm | LS6011S | 5 | 50*18*7cm | 0.6kg | 6971254923343 |
Single Use Monopolar Johann Fenestrated Grasper, with Ratchet On/Off Mechanism, Shaft Diameter: 3mm, Shaft Length: 200mm | LS6021S | 5 | 50*18*7cm | 0.6kg | 6971254923374 |
Single Use Monopolar Clinch Grasper, with Ratchet On/Off Mechanism, Shaft Diameter: 3mm, Shaft Length: 200mm | LS6025S | 5 | 50*18*7cm | 0.6kg | 6971254923435 |
Single Use Monopolar Curved Metzenbaum Scissors, insulation to the tip, Shaft Diameter: 3mm, Shaft Length: 340mm | LS6001L | 5 | 50*18*7cm | 1.0kg | 6971254923336 |
Single Use Monopolar Maryland Dissector, Shaft Diameter: 3mm, Shaft Length: 340mm | LS6011L | 5 | 50*18*7cm | 1.0kg | 6971254923367 |
Single Use Monopolar Johann Fenestrated Grasper, with Ratchet On/Off Mechanism, Shaft Diameter: 3mm, Shaft Length: 340mm | LS6021L | 5 | 50*18*7cm | 1.0kg | 6971254923398 |
Single Use Monopolar Clinch Grasper, with Ratchet On/Off Mechanism, Shaft Diameter: 3mm, Shaft Length: 340mm | LS6025L | 5 | 50*18*7cm | 1.0kg | 6971254923459 |
