3mm Lap Instruments

VHMED provides a wide range of instrumentations for endoscopic tissue manipulations, including electrosurgical instrumentations in the diameters of 5mm and 3mm, as well as articulating instruments to enable the reach to target tissues which are difficult to operate by standard straight instruments, both monopolar laparoscopic instruments and bipolar laparoscopic instruments. Our proprietary Surecut technology allows our VShear curved Metzenbaum scissors with best-in-class smoothness and sharpness in every endoscopic transection. Laparoscopic Mini Metzenbaum scissors are designed for the transection of delicate tissues. Our VDissect dissecting forceps are designed for efficient tissue dissection with electrocautery energy. A wide choice of VGrasp series grasping forceps are designed for the grasping applications of different clinical structures. With the broadest range of laparoscopic instrumentations, VHMED offers a comprehension solutions for endoscopic tissue manipulations.

3mm Laparoscopic Instruments

 3mm-laparoscopy



Product Descriptions

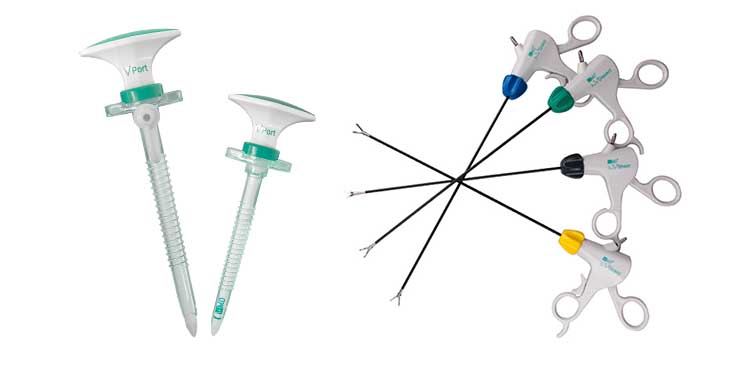

VHMED 3mm laparoscopic products enables surgeons to perform micro-laparoscopic surgeries with standard laparoscopic techniques. The reduced port size provides both clinical and cosmetic benefits for the necessary laparoscopic procedures.


VHMED‘s 3 millimeters laparoscopic hand instruments are available with 3mm Metzenbaum curved scissors, 3mm Maryland dissector, 3mm Johann grasper and 3mm Clinch grasper on our ergonomically designed PrezenaÒ handle. We offer the standard length of 280mm, shorter length of 200, and 400 mm for longer length. 3 millimeters suction irrigation tube set is also available with a standard 280 millimeters length, rounded tip probe for atraumatic dissection. VHMED also offer DamoclesÒ series of trocars for the use along with 3mm instrumentations. VHMED 3 millimeters laparoscopic solutions offer an outstanding clinical and cosmetic advantage as compared to the standard 5mm laparoscopic instruments.


VHMED 3mm trocars and instruments are single use products to avoid the needs of re-sterilization, and the possible bio-contamination.



Features & Benefits

  • Standard electrosurgery connections, great instrument compatibility

  • Ergonomically designed PrezenaÒ instrument handle, outstanding user comfort

  • Additional insulation layer with advanced material, improved electrosurgical safety

  • Colour coded design, with enhanced instrument identification in the operating theatre

  • Intuitive ratchet on/off mechanism on all graspers, offers greater flexibility in tissue manipulations

  • Ideal use with the companion of DamoclesÒ Trocars


3mm-instruments

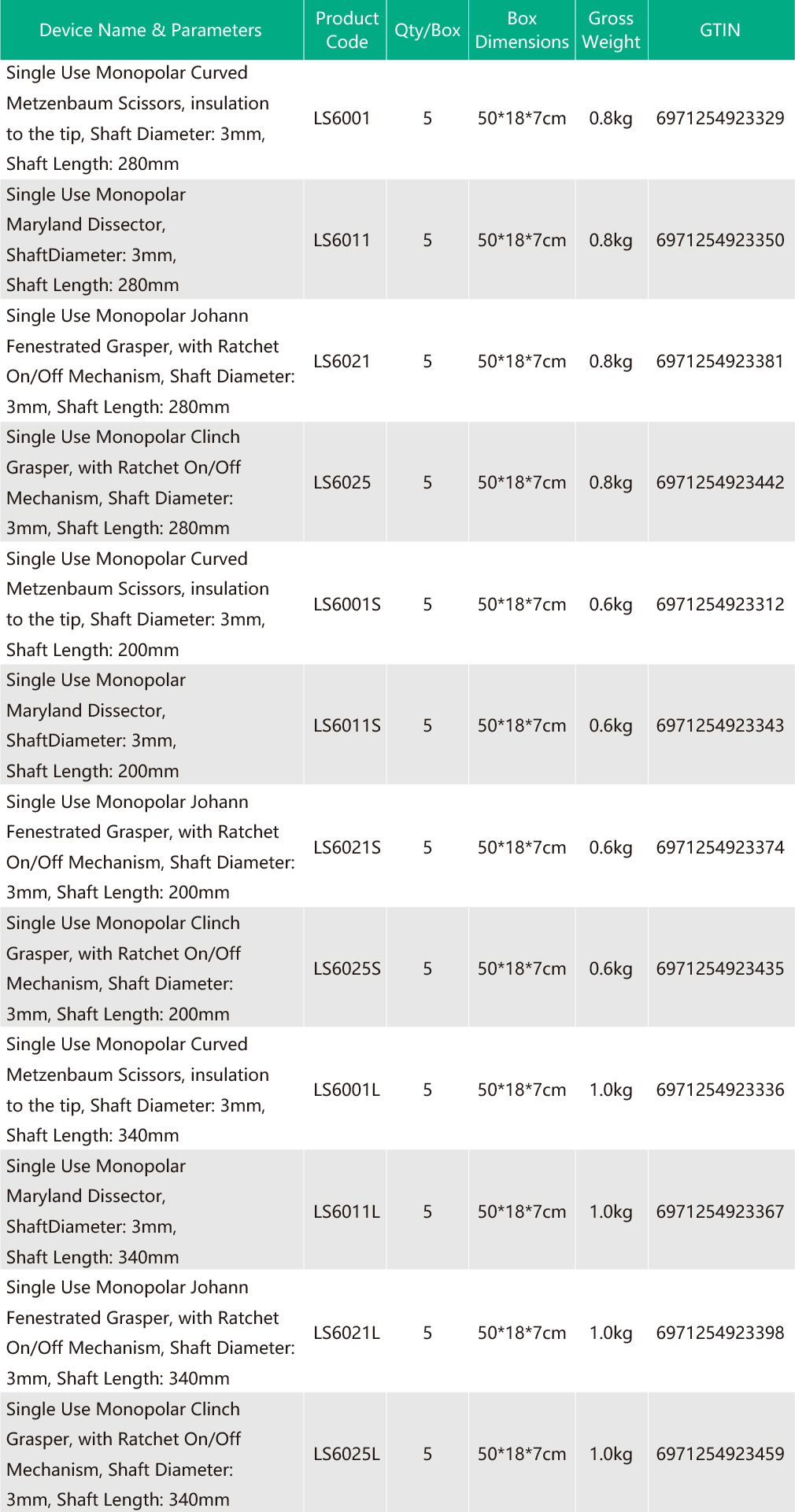

Order Information





Device Name & Parameters

Product Code

Qty/Box

Box Dimensions

Gross Weight

GTIN

Single Use Monopolar Curved Metzenbaum Scissors, insulation to the tip,   Shaft Diameter: 3mm, Shaft Length: 280mm

LS6001

5

50*18*7cm

0.8kg

6971254923329

Single Use Monopolar Maryland Dissector, Shaft Diameter: 3mm, Shaft   Length: 280mm

LS6011

5

50*18*7cm

0.8kg

6971254923350

Single Use Monopolar Johann Fenestrated Grasper, with Ratchet On/Off   Mechanism, Shaft Diameter: 3mm, Shaft Length: 280mm

LS6021

5

50*18*7cm

0.8kg

6971254923381

Single Use Monopolar Clinch Grasper, with Ratchet On/Off Mechanism,   Shaft Diameter: 3mm, Shaft Length: 280mm

LS6025

5

50*18*7cm

0.8kg

6971254923442

Single Use Monopolar Curved Metzenbaum Scissors, insulation to the tip,   Shaft Diameter: 3mm, Shaft Length: 200mm

LS6001S

5

50*18*7cm

0.6kg

6971254923312

Single Use Monopolar Maryland Dissector, Shaft Diameter: 3mm, Shaft   Length: 200mm

LS6011S

5

50*18*7cm

0.6kg

6971254923343

Single Use Monopolar Johann Fenestrated Grasper, with Ratchet On/Off   Mechanism, Shaft Diameter: 3mm, Shaft Length: 200mm

LS6021S

5

50*18*7cm

0.6kg

6971254923374

Single Use Monopolar Clinch Grasper, with Ratchet On/Off Mechanism,   Shaft Diameter: 3mm, Shaft Length: 200mm

LS6025S

5

50*18*7cm

0.6kg

6971254923435

Single Use Monopolar Curved Metzenbaum Scissors, insulation to the tip,   Shaft Diameter: 3mm, Shaft Length: 340mm

LS6001L

5

50*18*7cm

1.0kg

6971254923336

Single Use Monopolar Maryland Dissector, Shaft Diameter: 3mm, Shaft   Length: 340mm

LS6011L

5

50*18*7cm

1.0kg

6971254923367

Single Use Monopolar Johann Fenestrated Grasper, with Ratchet On/Off   Mechanism, Shaft Diameter: 3mm, Shaft Length: 340mm

LS6021L

5

50*18*7cm

1.0kg

6971254923398

Single Use Monopolar Clinch Grasper, with Ratchet On/Off Mechanism,   Shaft Diameter: 3mm, Shaft Length: 340mm

LS6025L

5

50*18*7cm

1.0kg

6971254923459
